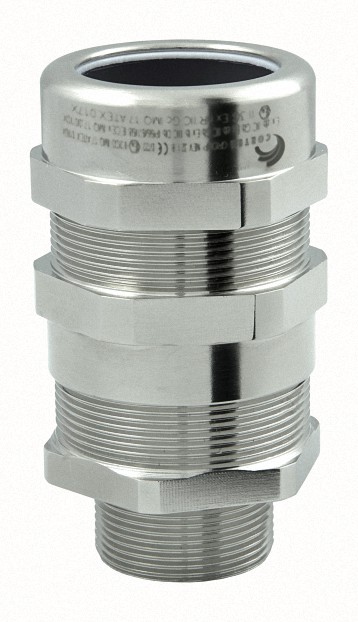

Barrier cable gland for armoured cables

The NEVB series barrier cable glands for armored cable are designed to guarantee the IP66/67 protection and the explosion protection ‘Ex db IIC; Ex eb IIC ’in applications where installation requirements are needed in accordance with the EN - IEC 60079-14: 2015 standard.

The barrier is shaped around the conductors thanks to the particular mixture that flows through them in the special bushing ensuring a complete seal. The liquid resin used prevents the formation of air pockets or voids between the conductors and the bushing (typical problems found with malleable resins).

• Resin kit available separately.

Construction

• Body in nickel-plated brass. Two sealing rings;
• ISO 7/1, NPT and isometric threads.

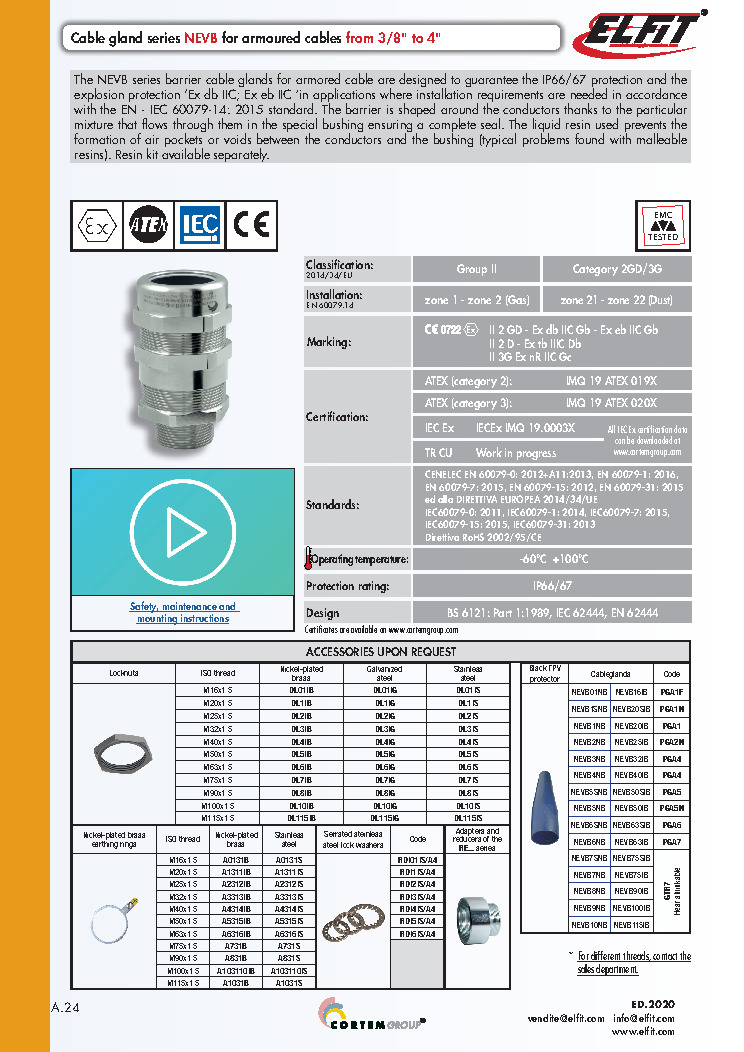

Catalogs
